3D-IDE: 3D Implicit Depth Emergent

Abstract

Leveraging 3D information within Multimodal Large Language Models (MLLMs) has recently shown significant advantages for indoor scene understanding. However, existing methods, including those using explicit ground-truth 3D positional encoding and those grafting external 3D foundation models for implicit geometry, struggle with the trade-off in 2D-3D representation fusion, leading to suboptimal deployment. To this end, we propose 3D-Implicit Depth Emergence, a method that reframes 3D perception as an emergent property derived from geometric self-supervision rather than explicit encoding. Our core insight is the Implicit Geometric Emergence Principle (IGEP): by strategically leveraging privileged geometric supervision through mechanisms like a fine-grained geometry validator and global representation constraints, we construct an information bottleneck. This bottleneck forces the model to maximize the mutual information between visual features and 3D structures, allowing 3D awareness to emerge naturally within a unified visual representation. Unlike existing approaches, our method enables 3D perception to emerge implicitly, disentangling features in dense regions and, crucially, eliminating depth and pose dependencies during inference with zero latency overhead.

Method

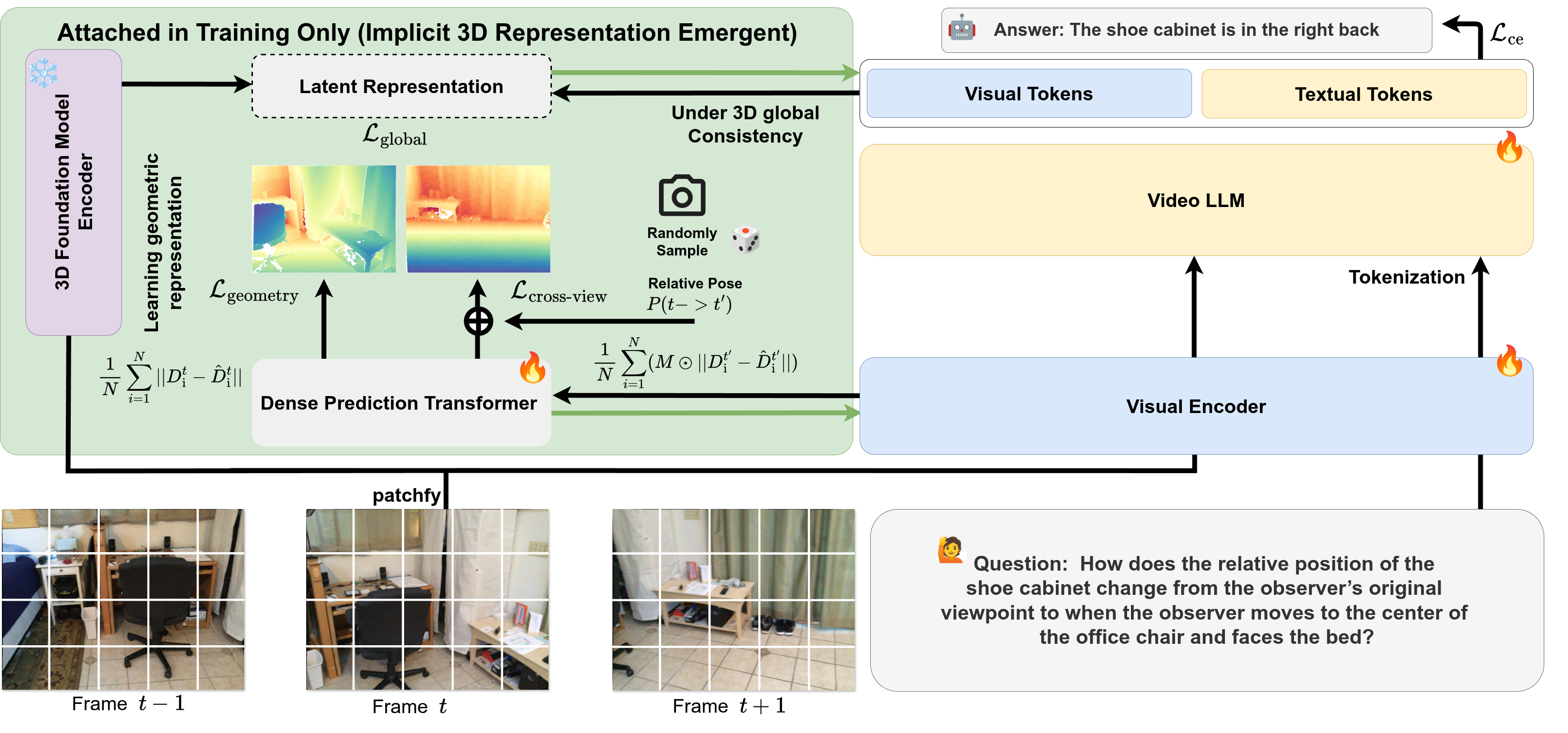

3D-IDE Framework Overview — **The 3D-IDE framework.** Instead of injecting coarse, lossy 3D coordinates, we use a privileged training module (green box) detached at inference for **zero latency**. This module forces the model to learn a fine-grained 3D representation implicitly via two parallel gradient signals: a geometric gradient from a depth validator and a global gradient from a frozen foundation model.

3D-IDE is guided by the Implicit Geometric Emergence Principle (IGEP). Rather than treating geometry as a mandatory input, we regard it as privileged supervision available only during training. A lightweight, training-only geometric validator and a global 3D teacher provide fine-grained and scene-level geometric signals that push the visual encoder to embed 3D structure directly in its tokens, without modifying the inference-time interface. The composite training objective is:

L_total = L_ce + L_geometry + L_cross-view + L_global

Approach Comparison

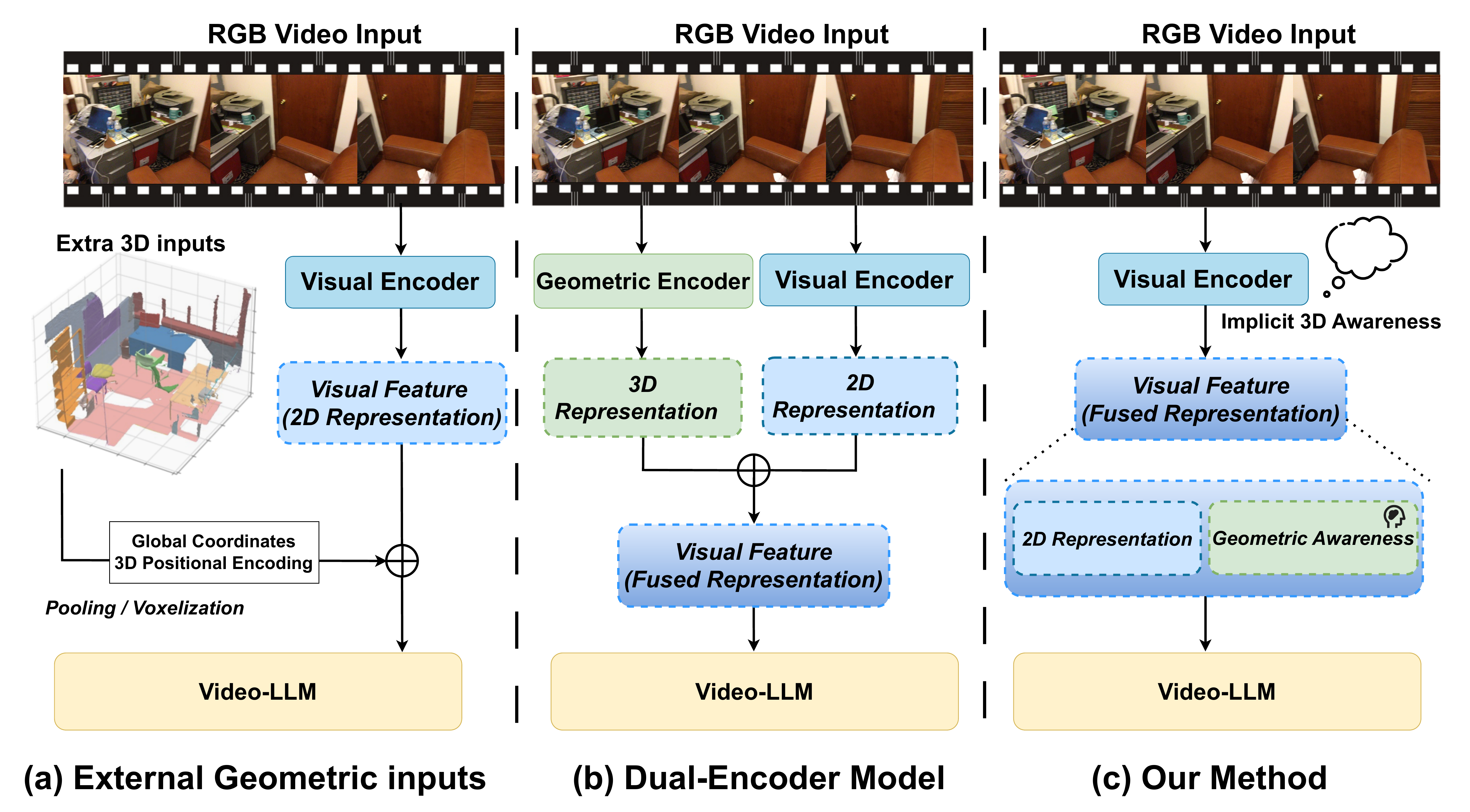

**Comparison of 3D-aware designs for video-LLMs.** (a) Explicit coordinate injection fuses 2D features with coarse 3D positional embeddings and requires 3D inputs at inference. (b) Dual encoders separately process RGB and geometry, then fuse their outputs. (c) 3D-IDE uses a single visual encoder trained so that 3D awareness emerges implicitly, enabling RGB-only inference.

Main Results

Performance comparison on 3D scene understanding benchmarks. Bold indicates best result within group.

Method	3D Inputs	ScanRefer		Multi3DRefer		Scan2Cap		ScanQA		SQA3D
		Acc@.25	Acc@.5	F1@.25	F1@.5	C@.5	B-4@.5	C	EM	EM
Generalists (with 3D geometric inputs)
Video-3D LLM*	None	53.7	47.8	46.0	42.4	31.5	29.9	99.7	29.5	58.6
VG LLM-4B	VGGT	53.5	47.5	-	-	78.6	40.9	-	-	57.0
VG LLM-8B	VGGT	57.6	50.9	-	-	80.0	41.5	-	-	57.9
VID-LLM	VGGT	50.1	46.7	47.2	42.9	81.5	40.6	101.9	27.6	57.3
3D-IDE (Ours)	None	60.9	54.5	59.8	54.9	79.0	40.7	102.1	29.8	59.2

Inference Efficiency

3D-IDE achieves over 2x faster inference and higher generation throughput while using less GPU memory.

Method	Params (B)	Mean Time (s)	Tokens/s	Peak Mem (GB)
VG LLM-8B	9.25	3.60	4.32	21.10
3D-IDE (Ours)	8.06	1.61	10.72	18.35

Ablation Study

Effect of each IGEP component on ScanRefer and Multi3DRefer.

Global	Geometric	Cross-view	ScanRefer		Multi3DRefer
			F1@.25	F1@.5	Acc@.25	Acc@.5
-	-	-	53.7	47.8	46.0	42.4
✓	-	-	56.9	50.8	55.6	51.3
✓	✓ scratch	-	59.8	53.3	59.7	54.3
✓	✓ scratch	✓	60.9	54.5	59.8	54.9

Qualitative Results

3D-IDE produces accurate localizations and descriptions that respect the underlying 3D scene context, despite relying only on RGB video at inference.

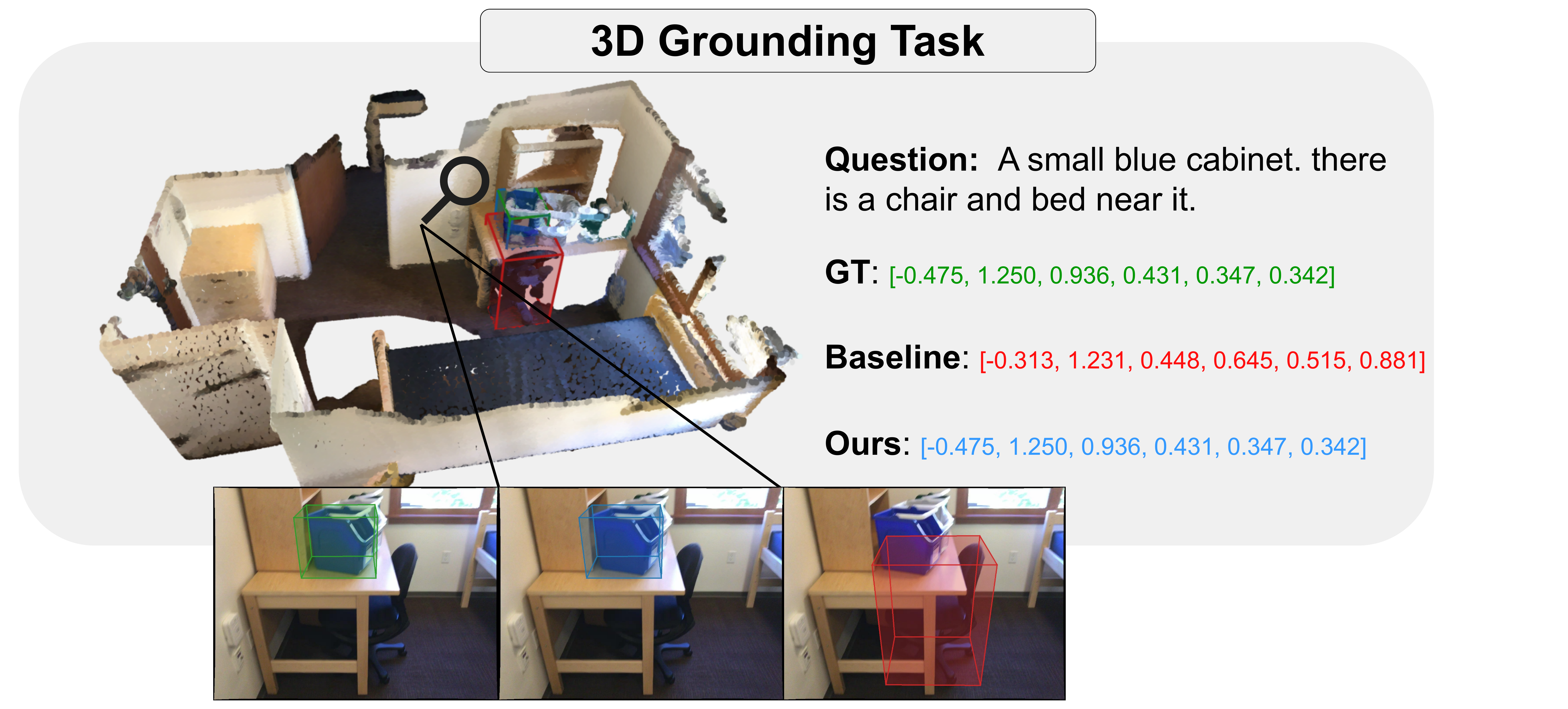

3D Grounding Task — **3D Grounding.** Given a natural language query, 3D-IDE predicts a 3D bounding box that closely matches the ground truth, while the baseline produces a significantly larger, mislocalized box.

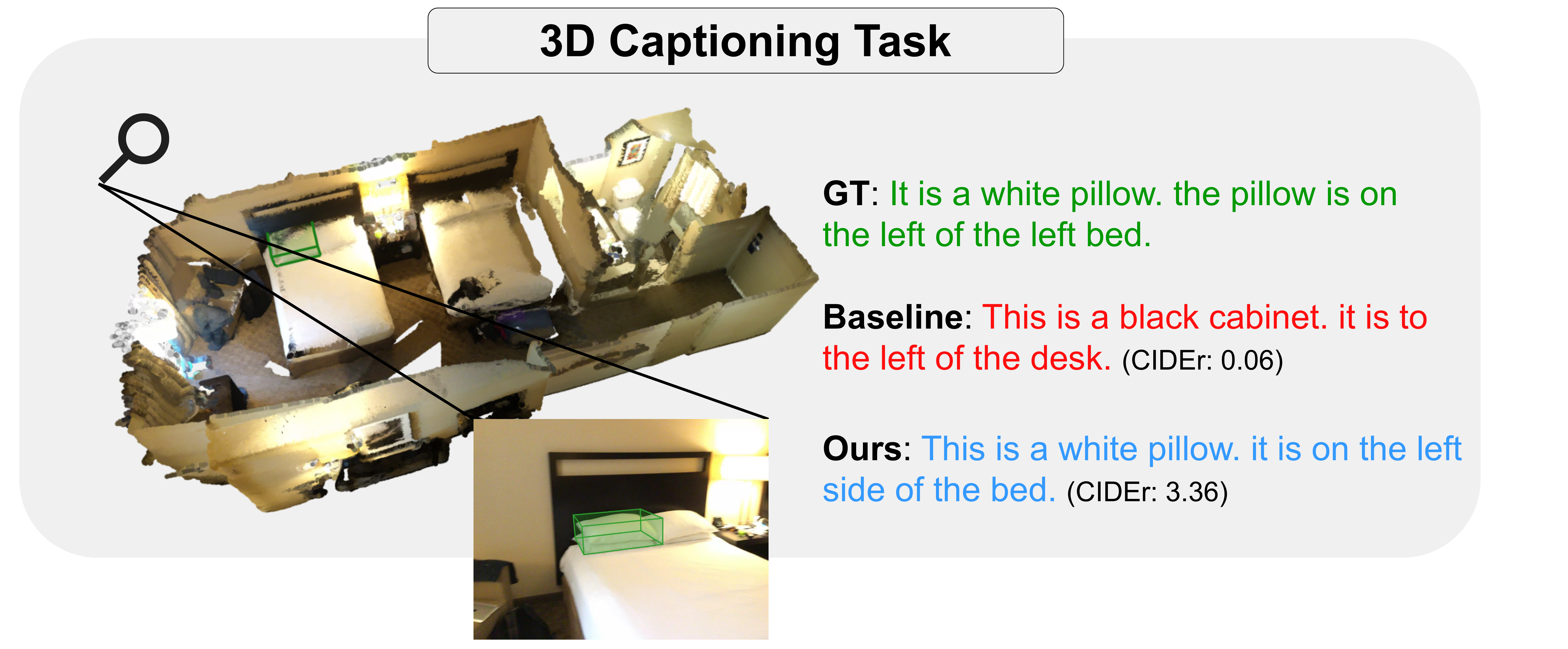

3D Captioning Task — **3D Dense Captioning.** 3D-IDE correctly identifies the object and its spatial context (CIDEr: 3.36), while the baseline misidentifies both the object and its location (CIDEr: 0.06).

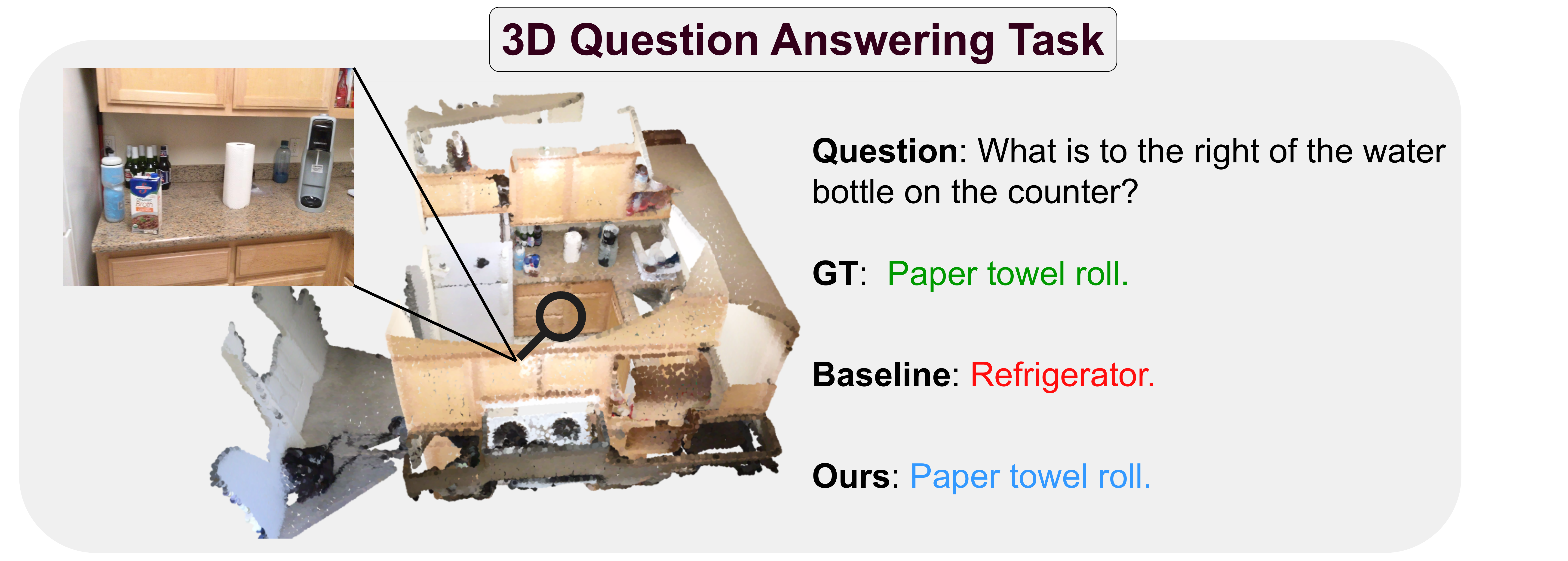

3D Question Answering Task — **3D Question Answering.** 3D-IDE correctly answers spatial reasoning questions about the scene, demonstrating emergent 3D understanding from RGB-only input.

Citation

@article{zhang2025ide, title = {3D-IDE: 3D Implicit Depth Emergent}, author = {Zhang, Chushan and Lu, Ruihan and Tong, Jinguang and Wang, Yikai and Li, Hongdong}, journal = {CVPR}, year = {2026} }
